Salient Features:
| Size | 5.5 Feet | 6 feet | 7 feet |
|---|---|---|---|
| Working width (in/cm) | 63/161 | 69/175 | 79/199 |
| Total Width (in/cm) | 77/196 | 80/204 | 90/229 |
| Total Length (in/cm) | 35/90 | 35/90 | 35/90 |
| Height (in/cm) | 44.4/113 | 44.4/113 | 44.4/113 |
| Weight (Kg) Approx | 420 | 450 | 460 |
| PTO Speed RPM | 540/1000 | 540/1000 | 540/1000 |
| No. Of Blades | 48 | 54 | 60 |

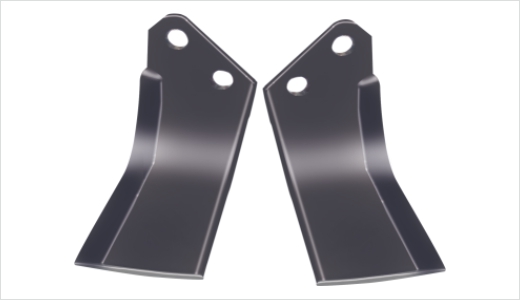

| Types of Blades | L&C | L&C | L&C |
| Suitable Tractor HP | 40-45 | 45-50 | 50-55 |
| 3-Point Hitch Type | Cat-II | Cat-II | Cat-II |

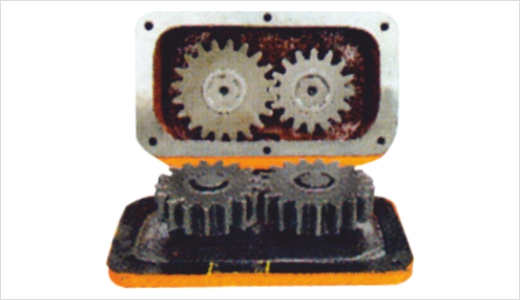

| Transmission Type | Gear | Gear | Gear |
| Rotor Tube Diameter (in/cm) | 3.5/9 | 3.5/9 | 3.5/9 |
| Rotor Swing Dia (in/cm) | 20/51 | 20/51 | 20/51 |
| Driveline Safety Device | SHEAR BOLT | SHEAR BOLT | SHEAR BOLT |
| # 4 no. of damper spring for 7 feet. | |||
| The Product & Specifications are subject to change/discontinue without any notice on the sole discretion of manufacturer. | |||
