Salient Features:

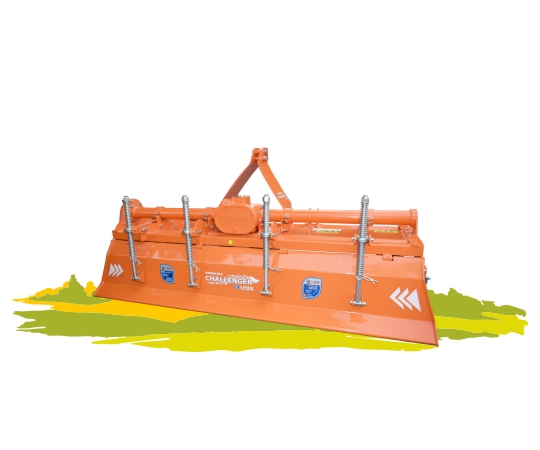

Challenger HD rotary tiller is a secondary tillage implement offering best in class Pulverization and Optimum Seed Germination
Equipped with heavy duty multispeed gearbox for wider range of rotor speed
Ensures excellent cutting and mixing of crop residue
Renowned 13x23 Crown pinion for heavy duty work

Specifications

Product	CHALLENGER HD ROTARY TILLER
Size	5 Feet	5.5 Feet	6 Feet	6.5 Feet	7 Feet	8 Feet	9 Feet	10 Feet
Tillage Width (in/cm)	59/149	65/166	69/174	74/188	79/200	87/220	106/269	114/291
Total Width (in/cm)	70/179	77/196	80/204	85/215	90/230	98/249	118/298	126/320
Total Length (in/cm)	35/90	35/90	35/90	35/90	35/90	35/90	35/90	35/90
Height (in/cm)	44/112	44/112	44/112	44/112	44/112	44/112	44/112	44/112
Weight (Kg) Approx	430	435/440/455	475	490/480	500	525	650	660
PTO Speed RPM	540/1000	540/1000	540/1000	540/1000	540/1000	540/1000	540/1000	540/1000
No. Of Blades	36	36/39/42	42	45	48/54	54/60	66	72

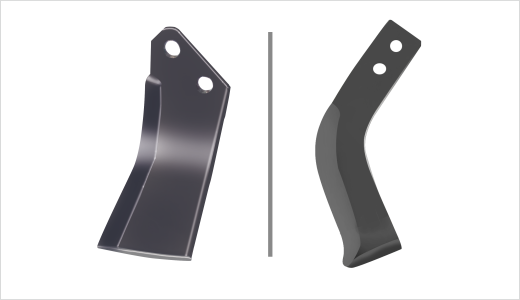

Types Of Blades	L/J/POCKET	L/J/POCKET	L/J/POCKET	L/J	L/J/POCKET	L/J/POCKET	L/J/POCKET	L/J/POCKET
Suitable Tractor HP	35-40	40-45	45-50	45-50	50-55	55-60	65-70	70-75
3-Point Hitch Type	Cat-II	Cat-II	Cat-II	Cat-II	Cat-II	Cat-II	Cat-II	Cat-II
Transmission Type	Gear	Gear	Gear	Gear	Gear	Gear	Gear	Gear
Rotor Tube Diameter (in/cm)	3.5/9	3.5/9	3.5/9	3.5/9	3.5/9	3.5/9	3.5/9	3.5/9
Rotor Swing Dia (in/cm)	18/46	18/46	18/46	18/46	18/46	18/46	18/46	18/46
Driveline Safety Device	SHEAR BOLT	SHEAR BOLT	SHEAR BOLT	SHEAR BOLT	SHEAR BOLT	SHEAR BOLT	SHEAR BOLT	SHEAR BOLT
# 4 no. of damper spring for 7 feet & above variants.
The Product Specifications are subject to change/discontinue without any notice on the sole discretion of manufacturer.
